PRECISION SAND CORE & SAND MOLDING PROCESS

SAND CORE PACKAGE table
COLD BOX PROCESS SHELL MOLD PROCESS
S2 cylinder block A2 cylinder block U2 cylinder block
(Veracruz/Mohave) (Starex/Bongo3/Porter) (Accent/Avante)

GRAVITY CASTING FOR PROTO TYPE & MASS PRODUCTS MATERIAL : FC25, FC30, CGI, FCD40, FCD50, FCD70

CAST IRON table
Item V8 cylinder block (gasoline) I3 cylinder block(diesel) I4 cylinder block(diesel) I3 cylinder head(diesel) I4 cylinder head(diesel)
Fuel Gasoline Diesel Diesel Diesel Diesel

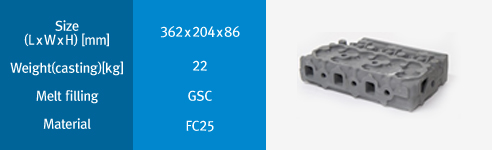

Image V8 cylinder block (gasoline) image I3 cylinder block(diesel) image I4 cylinder block(diesel) image I3 cylinder head(diesel) image I4 cylinder head(diesel) image
Size
(LⅹWⅹH) [mm]		 550ⅹ500ⅹ310 349ⅹ263ⅹ313 450ⅹ263ⅹ313 362ⅹ204ⅹ86 463ⅹ204ⅹ86
Weight
(casting) [kg]		 105 45 57 22 28.5
Melt filling GSC GSC GSC GSC GSC
Material FC30 FC25 FC25 FC25 FC25
Maker -

GRAVITY CASTING & LOW PRESSURE CASTING FOR PROTO TYPE PRODUCTS MATERIAL : AC4CH, AC2B, AC4B

Al-ALLOY table
Item I4 cylinder block(gasoline) I4 cylinder block(diesel) V8 cylinder block(gasoline) I4 cylinder head(gasoline)
Fuel Gasoline Diesel Gasoline Gasoline
Image I4 cylinder block(gasoline) image I4 cylinder block(diesel) image V8 cylinder block(gasoline) image I4 cylinder head(gasoline) image
Size
(LⅹWⅹH) [mm]		 500ⅹ455ⅹ230 390ⅹ353ⅹ228 550ⅹ500ⅹ310 42ⅹ23ⅹ13
Weight
(casting) [kg]		 32.22
(Including Liner)		 19.6
(Including Liner)		 47
(Excluding Liner)		 15
Melt filling SNPC SNPC GSC GSC
Material A319-T7 A356-T6 A356-T6 A356
Liner Machinig
(Cast in)		 Counter Spiny
(Cast in)		 Machining
(Press in)		 -
